HOME - PRODUCTS - Needle Valve - DANV08-20 Needle Valve
DANV08-20 Needle Valve
Model：DANV08-20
Description
A screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve.The DANV08-20，increases its orifice value from fully closed to fully open with counter clockwise adjustment rotation.

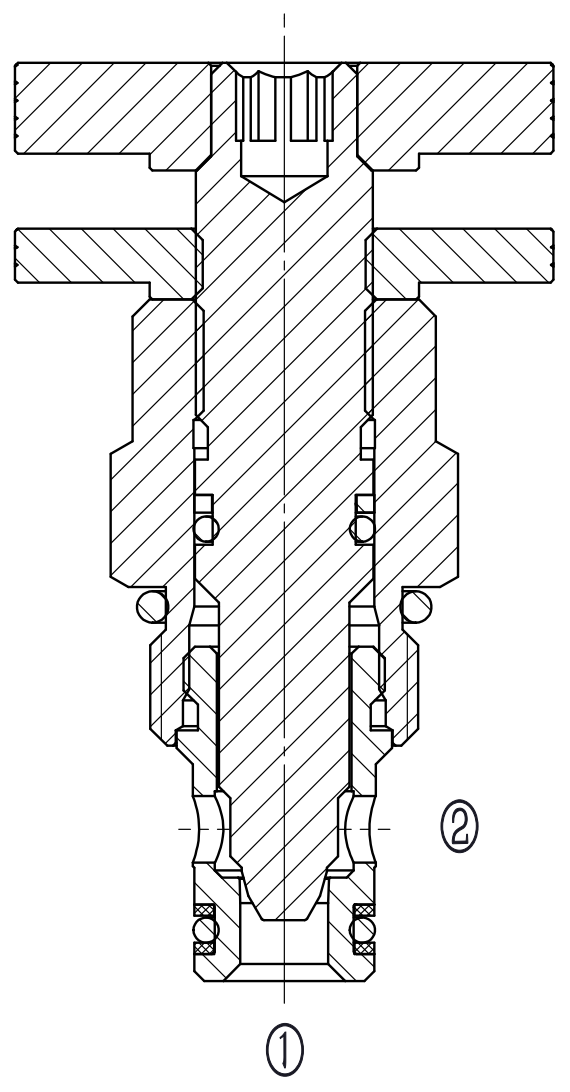

详情图 详情图
Technical Data
Operating Pressure
240 bar （3500 psi）
Flow
42 lpm (11 gpm) nominal at 7 bar (100 psi) differential at full open 3.5 turns
Internal Leakage
0.25 cc/minute (5 drop/minute) max. at shut-off
Adjustment Torque Required
0.56 Nm (5 inch-pounds) at 7 bar (100 psi); 5.41 Nm (48 inch-pounds) at 207 bar (3000 psi)
Temperature
-40℃～120℃
Fluids
Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
Cavity
T08-2E

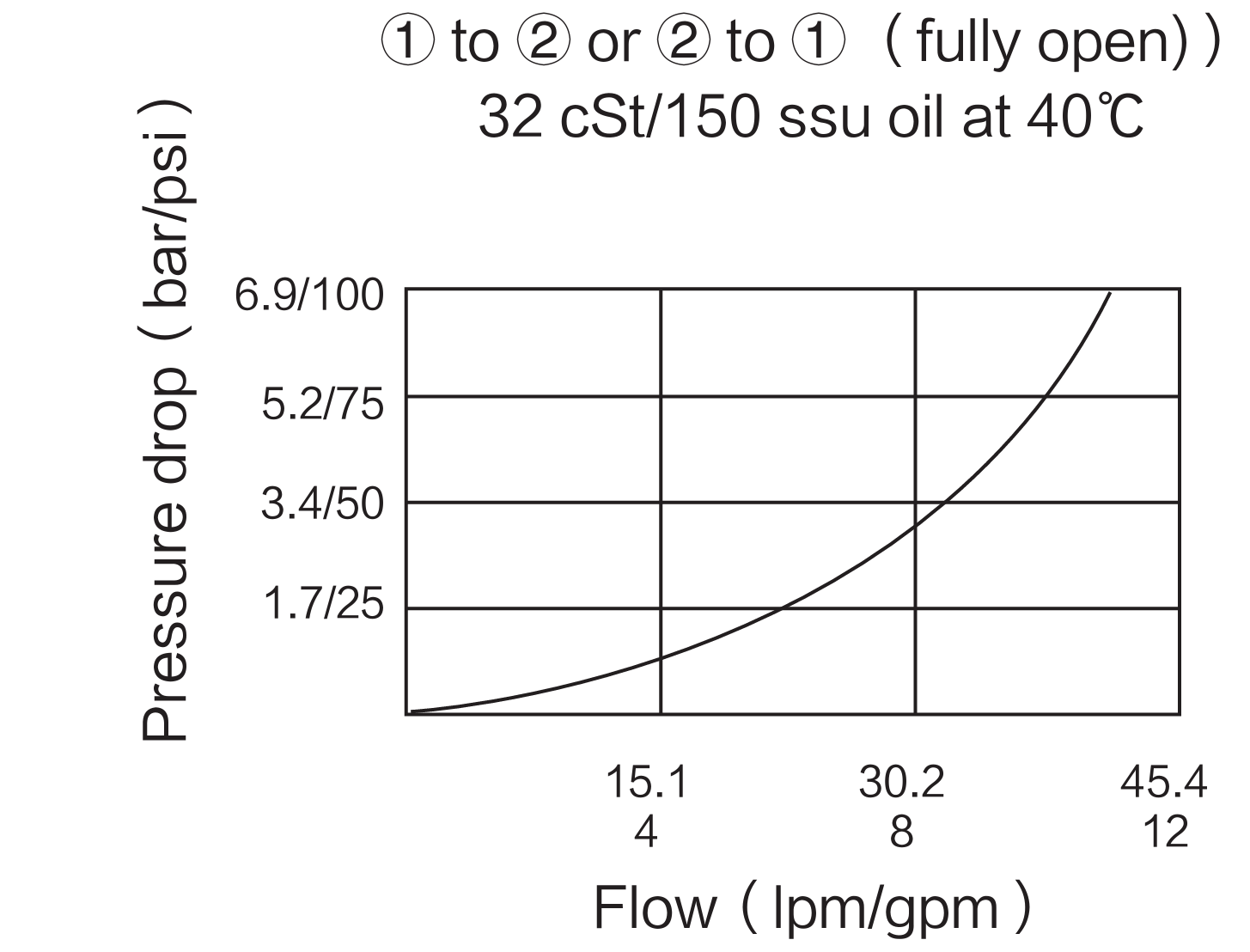

Performance Curves
Performance Curves

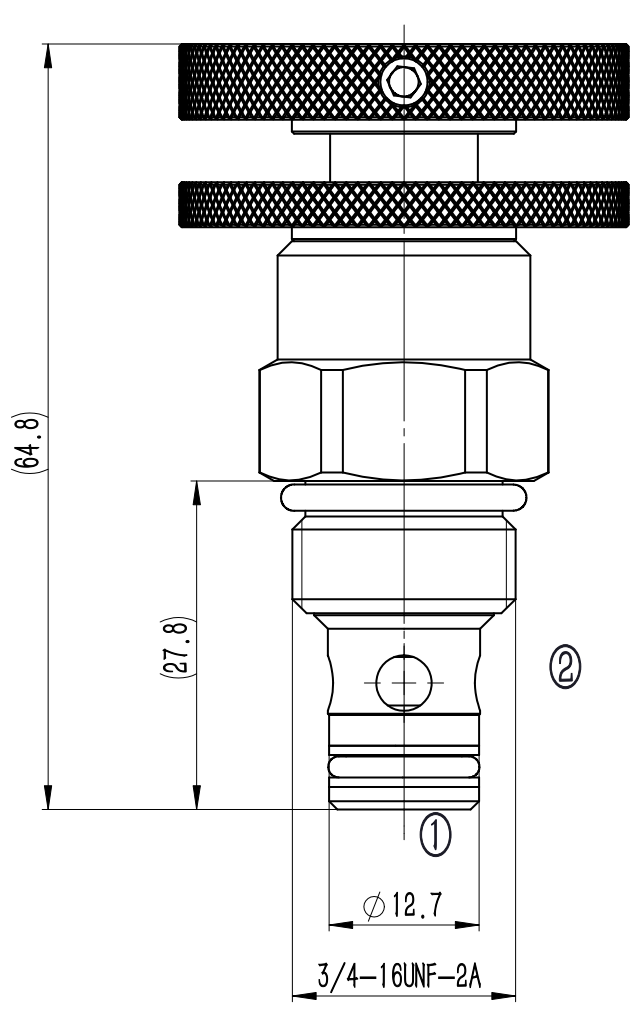

Size

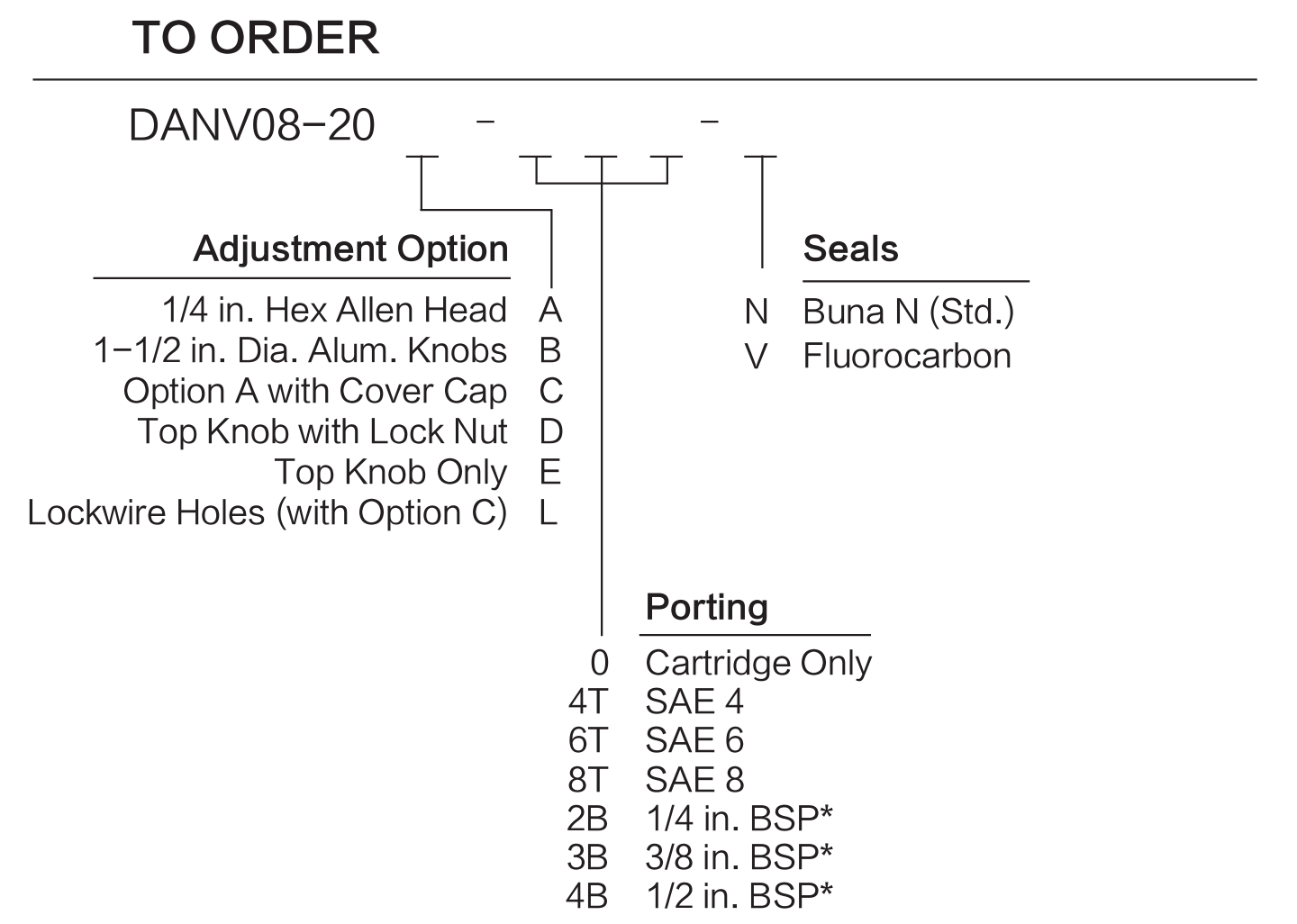

Ordering code
Size Ordering code
